ALLOY & ABRASION RESISTANT
STEEL PLATE
CSA QT 100 (100 KSI) /
ASTM A514
QUENCHED & TEMPERED
DESCRIPTION
A514 plate is a quenched and tempered alloy steel utilized in structural applications requiring high strength combined with good formability and toughness. A514 has minimum yield strength of 100ksi (690MPa) and can be ordered with supplemental Charpy V-notch impact test requirements.
A514 plate is used in a variety of structural applications which include; transport trailers, construction equipment, crane booms, mobile man-lifts, agricultural equipment, heavy vehicle frames and chassis and welded bridge structural members. Charpy V-Notch Impact Toughness requirements may be ordered as a supplementary requirement.
Available in
Gr B, E, F, H and S
MECHANICAL PROPERTIES
- Tensile: 110-130 ksi
- Yield: 100 ksi min
- Elongation: up to 2.5” 18% in 2” over 2.5” to 6” 16% in 2”
- Brinell: 235—293 is typical, but it is not usually indicated on the MTR’s
- Grade B: Up to and including 1-1/4”
- Grade E:
- Grade F: Over 2” to 2.5” inclusive
- Grade H: Over 1.25” to 2” inclusive
- Grade S:
COMMON STOCK SIZES
WIDTH (inches)
48 / 60 / 72 / 96
LENGTH (inches)
96 / 120 / 240 / 288 / 360 / 480
VARSTEEL REFERENCE GUIDE
CSA QT 130 (130 KSI) /
ASTM A514
QUENCHED & TEMPERED
DESCRIPTION
130K material is an ultra-high strength quenched and tempered alloy plate with a very high strength and low temperature toughness (ductility). It also exhibits enhanced corrosion protection when compared to carbon steel plate. The structural alloy provides the opportunity to reduce component weight through offering a high strength to weight ratio. 130K ultra-high strength alloy plate is used in a variety of applications which include; mining equipment, shredders, bridges, buckets, forestry equipment, transport trailers, construction equipment, crane booms, mobile man-lifts, agricultural equipment, heavy vehicle frames and chassis.
MECHANICAL PROPERTIES
- YP (MPa), min.: 130 (900)
- Tensile (MPa), min.: 136-160 (940-1100)
- Yield: 100 ksi min
- Elongation in 2" (50mm), min. %: 16
COMMON STOCK SIZES
WIDTH (inches)
48 / 60 / 72 / 96 / 120
LENGTH (inches)
96 / 120 / 240 / 288 / 360 / 480
VARSTEEL REFERENCE GUIDE
AR200 / AR235
ABRASION RESISTANT
DESCRIPTION
This product is an as-rolled, medium-carbon steel plate designed for moderate wear resistance. It is referred to as AR200, AR235, or AR Medium depending on the manufacturer. This product is produced to a chemistry to achieve a desired Brinell Hardness range. The typical Brinell Hardness range is 200-250 BHN.
Typical applications for AR200/AR235 steel plate include cement mixer drums and fins, bulk material handling chute liners, skirt board liners, and screw conveyers.
MECHANICAL PROPERTIES
- Tensile: 90 ksi TYPICAL – NOT INTENDED FOR STRUCTURAL USE
- Yield: 70 ksi TYPICAL – NOT INTENDED FOR STRUCTURAL USE
- Brinell: 180 min/ 235 nominal
COMMON STOCK SIZES
WIDTH (inches)
48 / 60 / 72 / 96 / 120
LENGTH (inches)
96 / 120 / 240 / 288 / 360 / 480
VARSTEEL REFERENCE GUIDE
AR400F
ABRASION RESISTANT
DESCRIPTION
A quenched & tempered, through-hardened, abrasion-resistant grade of steel plate. This specialized plate is designed for applications that demand both wear resistance and impact toughness. AR400F exhibits an optimal combination of hardness, abrasion resistance, formability, and weldability. The typical Brinell Hardness range is 360-444 BHN.
Applications include dump body liners, bulldozer liners, flights, gates, and screens.
MECHANICAL PROPERTIES
- Tensile: 180-200 ksi - NOT INTENDED FOR STRUCTURAL USE
- Yield: 140 ksi – NOT INTENDED FOR STRUCTURAL USE
- Elongation: 14.8% in 8"
- Brinell: 360 min / 400 nominal
COMMON STOCK SIZES
WIDTH (inches)
48 / 60 / 72 / 96
LENGTH (inches)
96 / 120 / 240 / 288 / 360 / 480
VARSTEEL REFERENCE GUIDE
AR450F
ABRASION RESISTANT
DESCRIPTION
AR450F is an abrasion resistant specialty plate product specifically designed for service applications that require both wear resistance and impact toughness. It is excellent solution if you are looking for a superior combination of hardness, abrasion resistance, formability, weldability, toughness and flatness. AR450F plate is designed with a through thickness Brinell hardness range of 430-480 and a nominal hardness of 450BHN. AR450F has similar chemistry and physical characteristics of AR400F with slightly higher hardness levels. AR450F plate is used in equipment where resistance to sliding abrasion is critical. Industries requiring AR450F include heavy construction, raw material handling, mining, aggregate, road building, scrap processing, demolition, forestry and oil and gas exploration.
MECHANICAL PROPERTIES
- Tensile: 180-200 ksi - NOT INTENDED FOR STRUCTURAL USE
- Yield: 140 ksi – NOT INTENDED FOR STRUCTURAL USE
- Elongation: 14.8% in 8"
- Brinell: 410 min / 480 nominal
COMMON STOCK SIZES
WIDTH (inches)
48 / 60 / 72 / 96
LENGTH (inches)
96 / 120 / 240 / 288 / 360 / 480
VARSTEEL REFERENCE GUIDE
AR500F
ABRASION RESISTANT
DESCRIPTION
AR500F is an abrasion resistant specialty plate product specifically designed for service applications that require both wear resistance and impact toughness. It is excellent solution if you are looking for a superior combination of hardness, abrasion resistance, formability, weldability, toughness and flatness. AR500F plate is designed with a through thickness Brinell hardness range of 470-530 and a nominal hardness of 500BHN. AR500F plate is used in equipment where resistance to sliding abrasion is critical. Product applications requiring AR500F include dump bodies, conveyors, crushers, hoppers, chutes, pavers, gears, rock hammers, screens, grapples, knives, shovels, etc
MECHANICAL PROPERTIES
- Tensile: 180-200 ksi - NOT INTENDED FOR STRUCTURAL USE
- Yield: 140 ksi – NOT INTENDED FOR STRUCTURAL USE
- Elongation: 14.8% in 8"
- Brinell: 460 min / 540 nominal
COMMON STOCK SIZES
WIDTH (inches)
48 / 60 / 72 / 96
LENGTH (inches)
96 / 120 / 240 / 288 / 360 / 480
VARSTEEL REFERENCE GUIDE
Processing Capabilities
ROLLING
PLASMA CUTTING

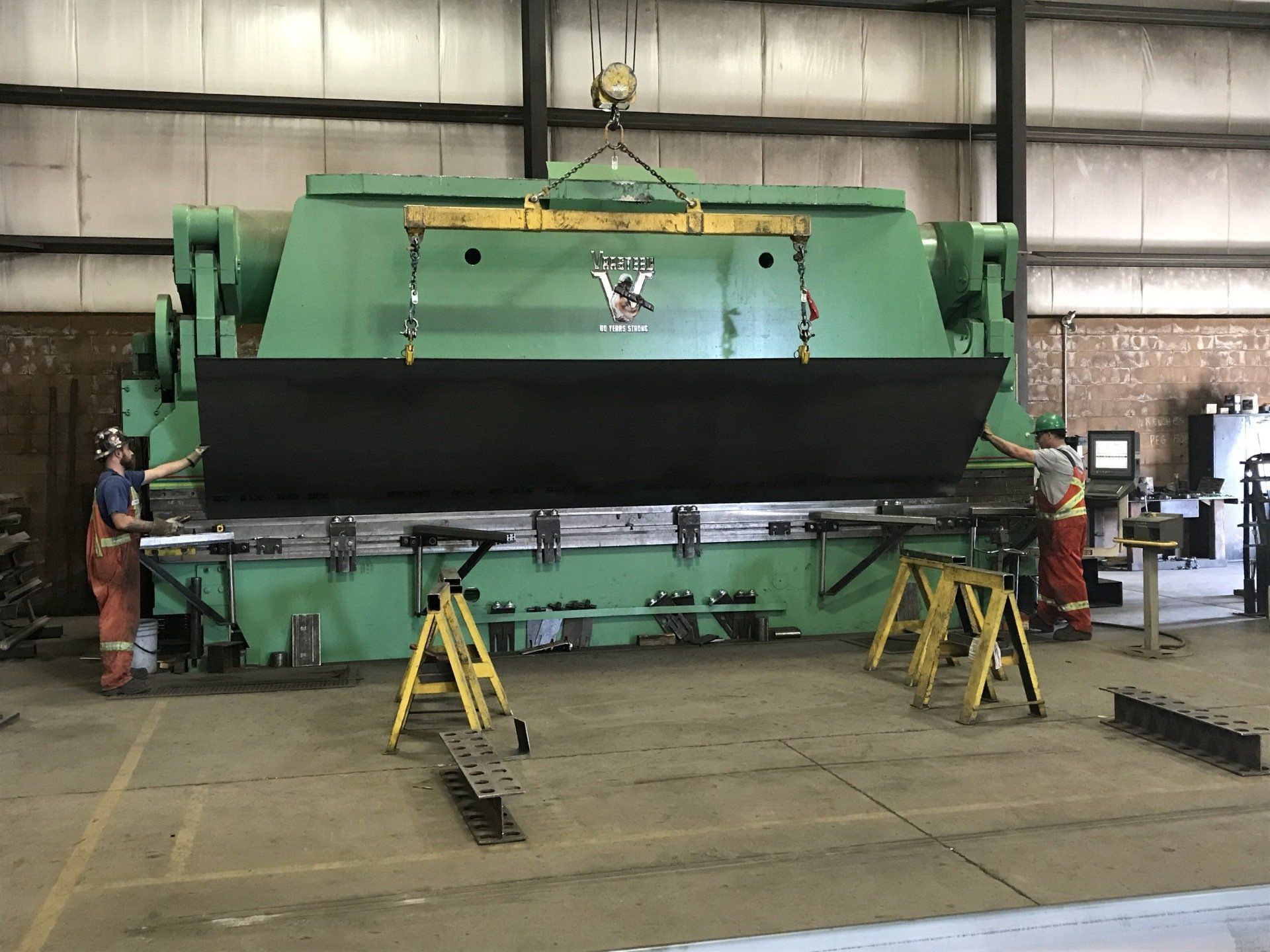

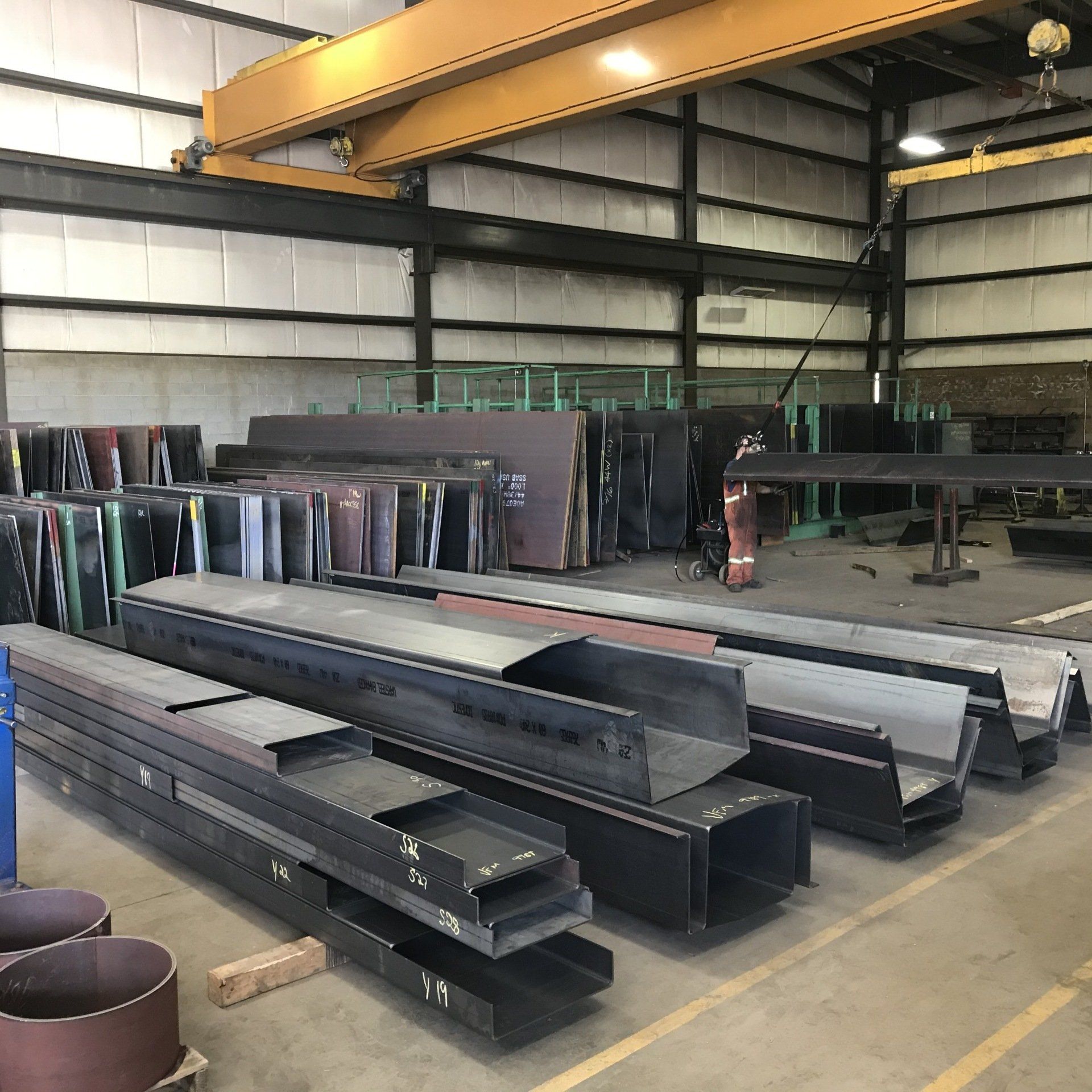

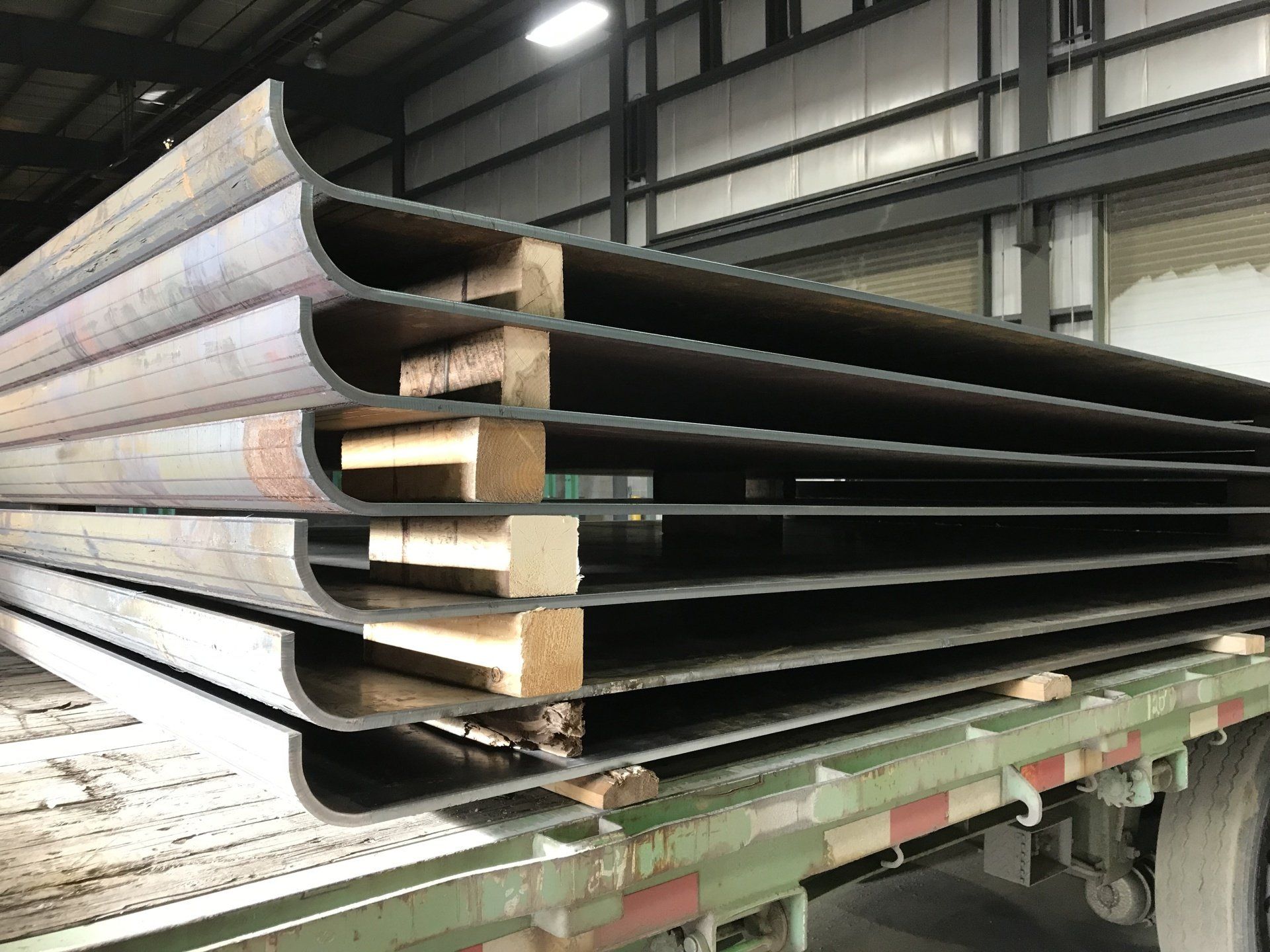

BRAKE FORMING
Other Steel Plates
METALS PROCESSING
THEORETICAL WEIGHT PER PLATE
| THICKNESS | 3/16" | 1/4" | 5/16" | 3/8" | 1/2" | 5/8" | 3/4" | 7/8" | 1" | 1 1/4" | 1 1/2" | 2" | 2 1/2" | 3" | 3 1/2" | 4" | 4 1/2" | 5" | 6" |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| POUNDS PER SQ. FT. | 7.66 | 10.21 | 12.76 | 15.32 | 20.42 | 25.53 | 30.63 | 35.74 | 40.84 | 51.05 | 61.26 | 81.68 | 102.1 | 122.52 | 142.93 | 163.35 | 183.77 | 204.12 | 245.03 |
| 48 x 96 | 245 | 327 | 408 | 490 | 653 | 817 | 960 | 1144 | 1307 | 1634 | 1960 | 2614 | 3267 | 3921 | 4574 | 5227 | 5881 | 6534 | 7841 |
| 48 x 120 | 306 | 408 | 510 | 613 | 817 | 1021 | 1225 | 1430 | 1634 | 2042 | 2450 | 3267 | 4064 | 4901 | 5717 | 6534 | 7351 | 8168 | 9801 |
| 48 x 144 | 368 | 491 | 612 | 735 | 980 | 1225 | 1470 | 1716 | 1960 | 2450 | 2940 | 3921 | 4901 | 5881 | 6861 | 7841 | 8821 | 9801 | 11761 |
| 48 x 240 | 613 | 617 | 1021 | 1226 | 1634 | 2042 | 2450 | 2859 | 3267 | 4084 | 4901 | 6534 | 8168 | 9802 | 11434 | 13068 | 14702 | 16335 | 19602 |
| 60 x 96 | 306 | 408 | 510 | 613 | 817 | 1021 | 1225 | 1430 | 1634 | 2042 | 2450 | 3267 | 4084 | 4901 | 5717 | 6534 | 7351 | 8168 | 9801 |
| 60 x 120 | 383 | 511 | 638 | 766 | 1021 | 1277 | 1532 | 1787 | 2042 | 2553 | 3063 | 4084 | 5105 | 6126 | 7147 | 8168 | 9189 | 10210 | 12252 |
| 60 x 144 | 460 | 613 | 766 | 919 | 1225 | 1532 | 1838 | 2144 | 2450 | 3063 | 3676 | 4901 | 6126 | 7351 | 8576 | 9801 | 11026 | 12251 | 14702 |
| 60 x 240 | 765 | 1021 | 1276 | 1532 | 2042 | 2553 | 3063 | 3574 | 4084 | 5105 | 6126 | 8168 | 10210 | 12252 | 14293 | 16335 | 16377 | 20419 | 24503 |
| 72 x 96 | 368 | 490 | 613 | 735 | 980 | 1226 | 1470 | 1715 | 1960 | 2450 | 2940 | 3921 | 4901 | 5881 | 6851 | 7841 | 6821 | 9801 | 11761 |
| 72 x 120 | 460 | 613 | 766 | 919 | 1225 | 1532 | 1838 | 2144 | 2450 | 3063 | 3676 | 4901 | 6126 | 7351 | 8576 | 9801 | 11026 | 12251 | 14701 |
| 72 x 144 | 552 | 735 | 919 | 1103 | 1470 | 1838 | 2205 | 2573 | 2940 | 3676 | 4411 | 5881 | 7351 | 8821 | 10291 | 11761 | 13231 | 14702 | 17642 |
| 72 x 240 | 919 | 1225 | 1531 | 1638 | 2450 | 3064 | 3676 | 4289 | 4901 | 6126 | 7351 | 9802 | 12252 | 14702 | 17152 | 19602 | 22052 | 24503 | 29404 |
| 72 x 288 | 1104 | 1470 | 1838 | 2206 | 2940 | 3676 | 4410 | 5146 | 5880 | 7351 | 8821 | 11762 | 14702 | 17643 | 20582 | 23522 | 26463 | 29403 | 35284 |
| 84 x 96 | 429 | 572 | 715 | 858 | 1143 | 1430 | 1715 | 2001 | 2267 | 2859 | 3431 | 4574 | 5718 | 6861 | 8004 | 9148 | 10291 | 11435 | 13722 |
| 84 x 120 | 537 | 715 | 894 | 1072 | 1429 | 1788 | 2144 | 2501 | 2658 | 3574 | 4288 | 5718 | 7147 | 8576 | 10005 | 11435 | 12864 | 14293 | 17152 |
| 84 x 144 | 644 | 858 | 1072 | 1267 | 1715 | 2144 | 2573 | 3002 | 3430 | 4288 | 5146 | 6861 | 8576 | 10292 | 12006 | 13721 | 15437 | 17152 | 20583 |
| 84 x 240 | 1072 | 1429 | 1786 | 2144 | 2858 | 3575 | 4289 | 5004 | 5718 | 7147 | 8576 | 11435 | 14294 | 17153 | 20010 | 22869 | 25728 | 28587 | 34304 |
| 84 x 288 | 1288 | 1715 | 2144 | 2574 | 3430 | 4289 | 5145 | 6004 | 6860 | 8576 | 10292 | 13722 | 17153 | 20583 | 24012 | 27443 | 30873 | 34304 | 41165 |
| 96 x 96 | 490 | 654 | 816 | 980 | 1306 | 1634 | 1960 | 2288 | 2614 | 3267 | 3921 | 5227 | 6534 | 7841 | 9148 | 10454 | 11761 | 13068 | 15682 |
| 96 x 120 | 613 | 817 | 1021 | 1226 | 1634 | 2042 | 2450 | 2859 | 3267 | 4084 | 4901 | 6534 | 8168 | 9802 | 11434 | 13068 | 14702 | 16335 | 19602 |
| 96 x 144 | 735 | 980 | 1225 | 1471 | 1960 | 2451 | 2940 | 3431 | 3921 | 4901 | 5881 | 7841 | 9802 | 11762 | 13721 | 15682 | 17642 | 19602 | 23523 |
| 96 x 240 | 1226 | 1634 | 2042 | 2451 | 3267 | 4085 | 4901 | 5718 | 6534 | 8168 | 9802 | 13069 | 16336 | 19603 | 22869 | 26136 | 29403 | 32670 | 39205 |
| 96 x 288 | 1471 | 1960 | 2450 | 2941 | 3921 | 4902 | 5881 | 6862 | 7841 | 9802 | 11762 | 15683 | 19603 | 23524 | 27443 | 31363 | 35284 | 39204 | 47046 |
IMPERIAL = .2836 LBS PER CUBIC INCH
METRIC = 7.85 KG/M2 PER MILLIMETER THICK
